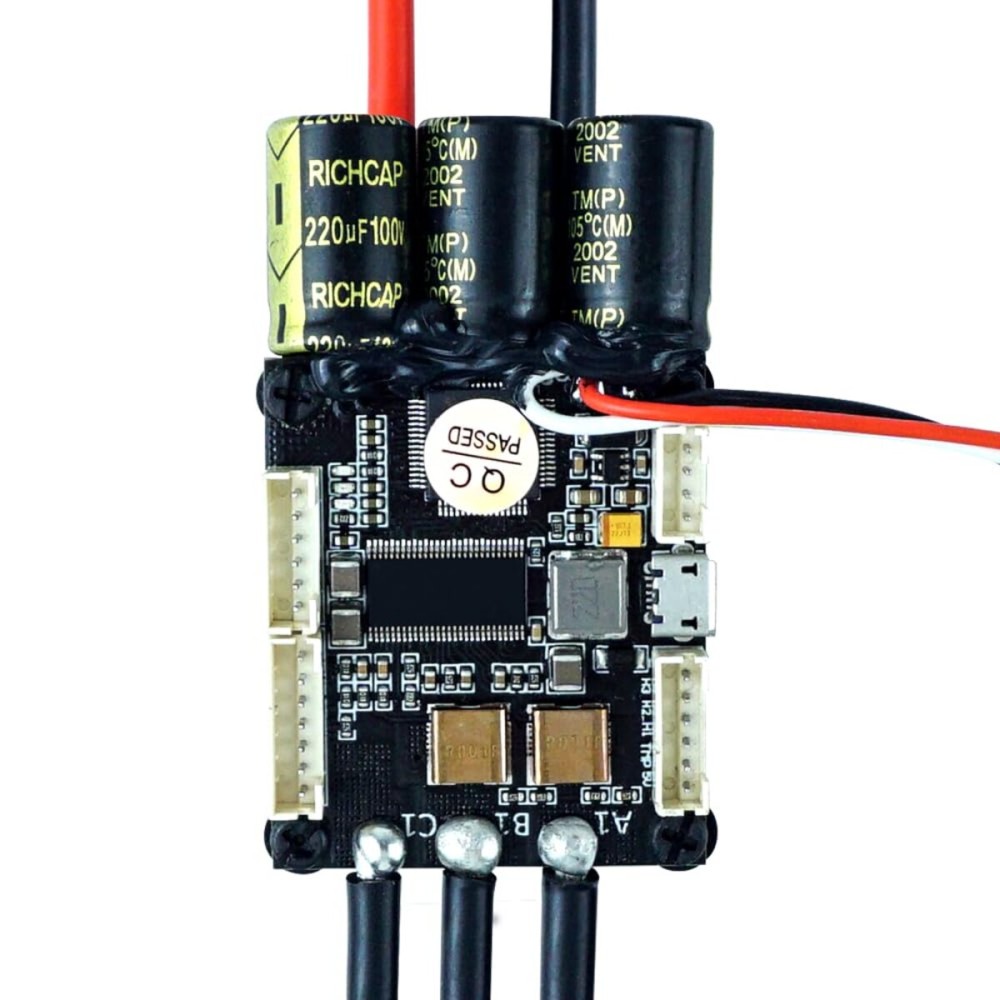

FLIPSKY Electric Speed Controller for Skateboard Mini FSESC4.20 50A Base on ESC 4.12 with Aluminum Anodized Heat Sink 12s esc
About this item
- Comparing with standard FSESC4.12,we made some changesin hardware design.1.Replacecapacitorwhichadopts imported capacitor with better per formanceverifiedbyV6
- Change to use 6PSC authentic power MOSFET(MODEL:NTMFS5C628NL),imported from USA,that are used in FSESC6.6 with reliable quality
- Change to use widely Mini USB port,
Small Size for wide used,can be installed various products for smaller size and lighter weight
- It is a highly modifiable electronic speed controller designed with DIY Electric Skateboards conversions in mind.
- Plication areas:Electric Skateboard Longboard Scooter DIY Skateboard ,E-Bike,EScooter
Estimated Delivery Date: Wednesday, 12 November to Friday, 14 November
Product Description
Specs:
Hardware:V4.20
Firmware: Latest Version
Amps: 50A continuous,instantaneous current 150A
Voltage: 8V-60V(Cells: 3-13S LiPo)
BEC: 5V1.5A
BEC type: Internal driver support
Timing: Software calibration
Cutoff Voltage: Programmable
Frequency: PWM input
Governor: No
Weight: 76g
PCB Size: 39x46x17.4mm
Size:67x39x18.3mm(Include Heatsink)
Programming card: No
Reverse: Yes
The shipping package contains:
1*Mini FSECS4.20
1* Micro USB
1* nbsp;Sensor Wire
1* Manual
Product Features
- Comparing with standard FSESC4.12,we made some changesin hardware design.1.Replacecapacitorwhichadopts imported capacitor with better per formanceverifiedbyV6
- Change to use 6PSC authentic power MOSFET(MODEL:NTMFS5C628NL),imported from USA,that are used in FSESC6.6 with reliable quality
- Change to use widely Mini USB port,
Small Size for wide used,can be installed various products for smaller size and lighter weight
- It is a highly modifiable electronic speed controller designed with DIY Electric Skateboards conversions in mind.
- Plication areas:Electric Skateboard Longboard Scooter DIY Skateboard ,E-Bike,EScooter
| Product Specification | |
| SKU | USZ_B08725X8CT |
| Manufacturer | FLIPSKY |
| Weight | 0.17 |
| Diamention | 0.00 x 1.50 x 0.00 |
